Currently, as never before, there is an
ever-increasing demand for higher workpiece accuracies. An amount of workpieces
can only be produced using the current machine parks after undergoing very
exacting set-up procedures and thus long change-over times.
Together with
the dead centre point of the external grinder the centre hole forms a plain
bearing. For optimum results the taper of the centre hole must be round and
co-axial with the centre hole at the other end of the workpiece.
Klein Maschinenbau GmbH U. Co. KG – Center Grinding Machines
After hardening the workpiece, its centre holes are neither round nor oval, are out of alignment, covered with scale and too rough. To obtain good results rapidly in circular grinding – essential for productivity – the centre hole must be ground by a Klein Centre Hole Grinder before they are mounted on the external grinder.
Centre Grinding Machine ZSU
• max. workpiece weight 160 kg
• max. workpiece
length 2000
mm
• max. centre hole
Ø 150 mm
• Linear Grinding Method
• Driven
dressing wheel
• Work-piece
is clamped into a steady or in a rotating grinding chuck.
For Workpieces which
• have to be concentric to the
outside diameter
• have to be offset
• have to have an excellent
roundness (< 2 µm)
• very small centre holes (min. Ø 1
mm)
Working Result
• Roundness as measured at the centre hole 2 µm

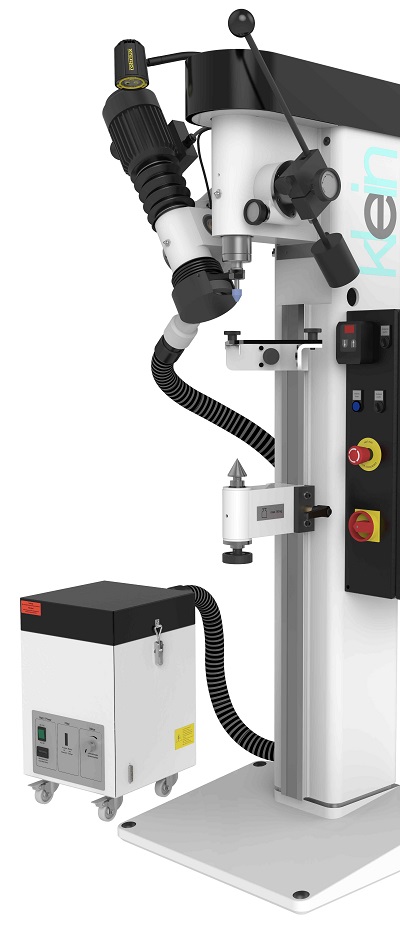

Center Grinding Machine ZSS
• max. workpiece weight 50 kg
• max. workpiece length 1500 mm
• max. centre hole Ø 120 mm
• Plunge grinding method, lapping method
• Driven dressing wheel
• Work-piece is held by hand
• Two-handed operation possible
For Workpieces which
• must not loose his position
• must have an excellent roundness (< 1 µm)
• very small centre holes. nge grinding method, lapping method
Working Result
• Roundness as measured at the centre hole 1 µm
Klein Maschinenbau GmbH U. Co. KG – Equipment
| Item Number | Description |
|---|---|
| 2020-020 | Dressing wheel Ø80mm, C80 (C36) m - lapping ZSS - until year 1995 |
| 2020-021 | Dressing wheel Ø80mm, C80SC (SC80) f - linear grinding ZSU - until year 1995 |
| 2020-022 | Dressing wheel Ø120mm, C120, m - lapping ZSS - year 1995 and newer |
| 2020-023 | Dressing wheel Ø120mm, C120SC (SC120) f - linear grinding ZSU - year 1995 and newer |
| 2020-024 | Dressing Wheel diamond Ø 120 mm |
| 2021-001 | Lapping paste sebaceous, 100 g can |
| 2021-002 | Lapping paste 1000 g |
| 2021-003 | Lapping Spray 400 ml |
| 2021-004 | Lapping paste 25 kg |
| 2022-002 | ZS 120m EK red for all parts, Grinding Wheels Ø 120 mm, only with adapter shank and nut |
| 2022-003 | ZS 120m EK red for all parts, Grinding Wheels Ø 150 mm, only with adapter shank and nut |
| 2022-004 | ZS 120m EK red for all parts, Grinding Wheels Ø 200 mm, only with adapter shank and nut |
| 2022-131 | ZS 13 m EK blue medium (ZS 37 m) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 13 mm |
| 2022-132 | ZS 13 f EK blue fine (ZS 37 f) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 13 mm |
| 2022-134 | ZS 13 NK grey (ZS 37 ) for unhardened parts, Shank Ø 10 mm, Grinding Pin Ø 13 mm |
| 2022-135 | ZS 13 EK white (ZS 37) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 13 mm |
| 2022-151 | ZS 15 m EK blue medium (ZS 38a m) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 10 mm |
| 2022-152 | ZS 15 f EK blue fine (ZS 38 af) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 15 mm |
| 2022-154 | ZS 15 m grey (ZS 38 a) for hardened parts, shaft Ø 10 mm, pin 15 mm |
| 2022-201 | ZS 20m EK blue medium (ZS 38m) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 20 mm |
| 2022-202 | ZS 20f am EK blue fine (ZS 38f) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 20 mm |
| 2022-204 | ZS 20 NK grey (ZS 38) for unhardened parts, Shank Ø 10 mm, Grinding Pin Ø 20 mm |
| 2022-205 | ZS 20 EK white (ZS 38) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 20 mm |
| 2022-301 | ZS 30m EK blue medium (ZS 39m) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 30 mm |
| 2022-302 | ZS 30f EK blue fine (ZS 39f) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 30 mm |
| 2022-304 | ZS 30 NK grey (ZS 39) for unhardened parts, Shank Ø 10 mm, Grinding Pin Ø 30 mm |
| 2022-305 | ZS 30 EK white (ZS 39) for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 30 mm |
| 2022-401 | ZS 40m EK blue medium for hardened parts, shank Ø 10 mm, grinding pin Ø 40 mm |
| 2022-404 | ZS 40f NK grey for non hardened parts, Shank Ø 10 mm, Grinding Pin Ø 40 mm |
| 2022-405 | ZS 40 EK white for hardened parts, Shank Ø 10 mm, Grinding Pin Ø 40 mm |
| 2022-501 | ZS 50m EK blue medium for hardened parts, shank Ø 10 mm, grinding pin Ø 50 mm |
| 2022-502 | ZS 50m EK red for all parts, shank Ø 10 mm, grinding pin Ø 50 mm |
| 2022-601 | ZS 60m EK blue medium for hardened parts Shank Ø 10 mm, Grinding Pin Ø 60 mm |
| 2022-602 | ZS 60m EK red for all parts, Shaft Ø 10 mm, Grinding Pins Ø 60 mm |
| 2022-701 | ZS 70m EK blue medium for hardened parts, shank Ø 10 mm, grinding pin Ø 70 mm |
| 2022-702 | ZS 70m EK red for hardened parts, shank Ø 10 mm, grinding pin Ø 70 mm |
| 2022-951 | ZS 95m EK red for all parts, Grinding Wheels Ø 95 mm, only with adapter shank and nut |
| 2022-952 | ZS 95m EK blue for all parts, Grinding Wheels Ø 95 mm, only with adapter shank and nut |
| 2024-615 | ZSU 615 HEK brown, (ZSU 601) shank Ø 10 mm, grinding pin Ø 15 mm |
| 2024-625 | ZSU 625 HEK brown, (ZSU 602) shank Ø 10 mm, grinding pin dia 25 x dia 8mm |
| 2024-635 | Grinding Pin ZSU 635 HEK brown, (ZSU 603) for hardened parts, shaft Ø 10 mm, grinding pin Ø 35 mm |
| 2024-650 | Grinding Pin ZSU 650 HEK brown for hardened parts, shaft Ø 10 mm, grinding pin Ø 50 mm |
| 2024-660 | Grinding Pin ZSU 660 HEK brown for all parts, shaft Ø 10 mm, grinding pin Ø 60 mm |
| 2024-670 | Grinding Pin ZSU 675 HEK brown, (ZSU 607) for all parts, shaft Ø 10 mm, grinding pin Ø 70mm |
| 2024-675 | Grinding Pin ZSU 675 HEK brown, (ZSU 607) for all parts, shaft Ø 10 mm, grinding pin Ø 75mm |
